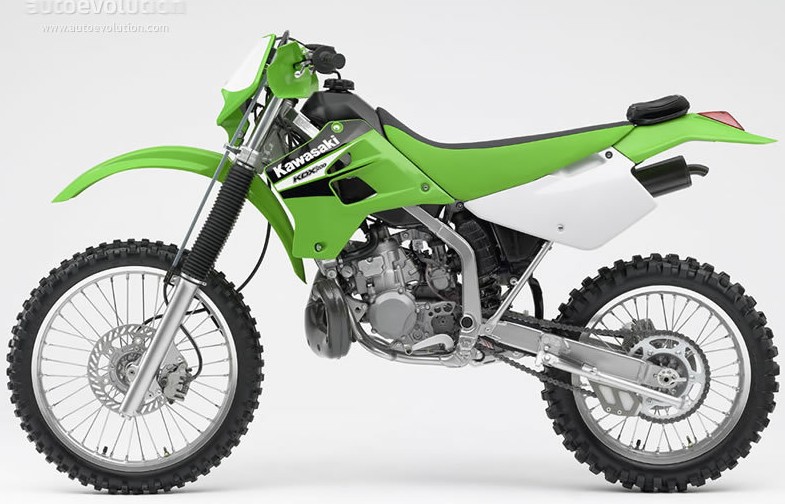

1983 Kawasaki KDX200
Specifications and workshop reference information for the 1983 Kawasaki KDX200, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | 2-stroke, single-cylinder, piston reed valve, air-cooled |
| Displacement | 198 cc |
| Bore × Stroke | 66.0 × 58.0 mm |
| Compression Ratio | 7.7:1 |
| Carburetor | Mikuni VM32SS |
| Fuel Type | Petrol mix (30:1) |
| Lubrication | Premix |
| Starting System | Primary kick |
| Ignition | CDI system |
| Ignition Timing | 21° BTDC @ 6000 rpm (2.34 mm) |
| Spark Plug | NGK B9ES (C) / NGK BR9ES |
| Headlight | 6V 25W |
| Taillight | 6V 5.3W |
Port Timing
| Inlet Open | — |
| Scavenging Open | 62° BBDC |
| Scavenging Close | 62° ABDC |
| Exhaust Open | 93° BBDC |
| Exhaust Close | 93° ABDC |
Transmission
| Transmission Type | 6-speed constant mesh, return shift |
| Clutch | Wet, multi-disc |
| Final Drive Type | Chain drive |
| 1st Gear | 2.769 (36/13) |
| 2nd Gear | 2.000 (28/14) |
| 3rd Gear | 1.533 (23/15) |
| 4th Gear | 1.235 (21/17) |
| 5th Gear | 1.041 (25/24) |
| 6th Gear | 0.869 (20/23) |
| Primary Reduction | 2.863 (63/22) |
| Final Reduction | 3.692 (48/13) |
| Overall Drive Ratio | 9.194 (Top gear) |
| Transmission Oil Capacity | 0.6 L (0.63 US qt) |
| Transmission Oil Type | SE class SAE 10W30 or 10W40 |
Dimensions
| Overall Length | 2195 mm (86.4 in) |
| Overall Width | 850 mm (33.5 in) |
| Overall Height | 1160 mm (45.7 in) |
| Wheelbase | 1430 mm (56.3 in) |
| Ground Clearance | 340 mm (13.4 in) |
| Dry Weight | 95 kg (211 lb) |
| Fuel Tank Capacity | 12.0 L (3.2 US gal) |
Chassis
| Frame Type | Tubular, single down tube |
| Steering Angle | 45° |
| Caster | 28° |
| Trail | 121 mm (4.76 in) |
| Front Tire | 3.00-21 4PR |
| Rear Tire | 4.00-18 4PR |
Suspension
| Front | Telescopic fork (Air fork) |
| Rear | Swing arm (Uni-trak) |
| Front Suspension Travel | 260 mm (10.24 in) |
| Rear Wheel Travel | 280 mm (11.02 in) |
| Fork Oil Type | KYB G-10 or SAE 10 |
| Fork Oil Capacity | 441–449 mL (14.91–15.18 US oz) |
Brakes & Wheels
| Front Brake | Drum brake |
| Rear Brake | Drum brake |
| Front Drum Size | 120 × 35 mm (4.72 × 1.38 in) |
| Rear Drum Size | 110 × 30 mm (4.33 × 1.18 in) |
