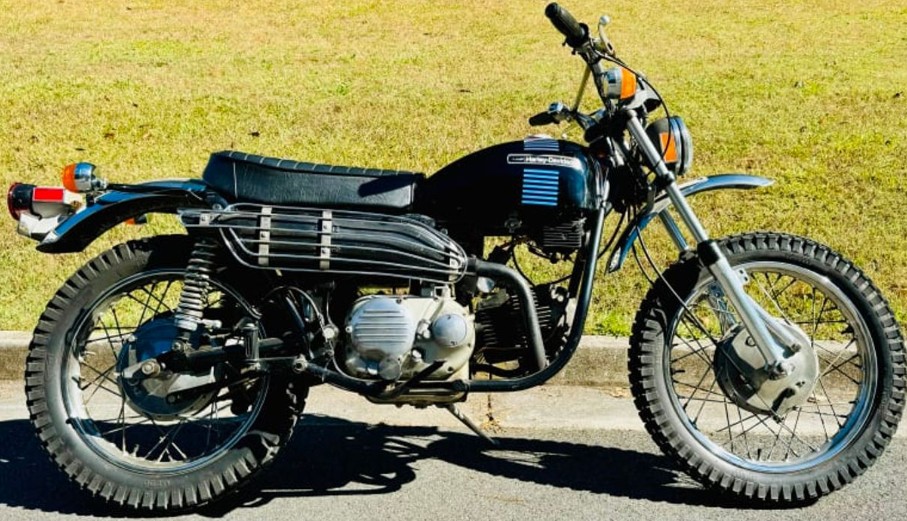

1974 Harley-Davidson SX350 Specifications and Specs
Specifications and workshop reference information for the 1974 Harley-Davidson SX350, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
ENGINE
| Engine Type | Air-cooled four-stroke OHV single-cylinder |
| Displacement | 344 cc |
| Bore | 74 mm |
| Stroke | 80 mm |
| Compression Ratio | 9.3:1 |
| Maximum Power | Approximately 29 PS at 7,000 rpm |
| Carburetor | Dell'Orto | Replacement Options |
| Ignition | Battery, contact breaker and coil |
TRANSMISSION
| Transmission | 5-speed manual |
| Primary Drive | Gear driven |
| Clutch | Dry multi-plate |
| Final Drive | Chain |
CHASSIS
| Frame | Tubular steel double-tube frame |
| Wheelbase | 1,447 mm (57.0 in) |
| Ground Clearance | 203 mm (8.0 in) |
| Weight | Approximately 135 kg (298 lb) |
SUSPENSION
WHEELS & TYRES
BRAKES
| Front Brake | Mechanical drum, double-leading-shoe type |
| Rear Brake | Mechanical drum |
FUEL
| Fuel System | Dell'Orto carburettor |
| Fuel Tank Capacity | Approximately 10 L (2.6 US gal) |
| Fuel Type | Petrol |
